Vision Box

What is Vision Box?

Vision Box is a compact system that integrates:

• An electrical cabinet: manages the automation processes.
• A touchscreen display: designed to facilitate user interaction.
• Proprietary CORTEX machine vision software: enables real-time monitoring of the machine status.
• Connectivity: with all machine components, ensuring precise and efficient process control.

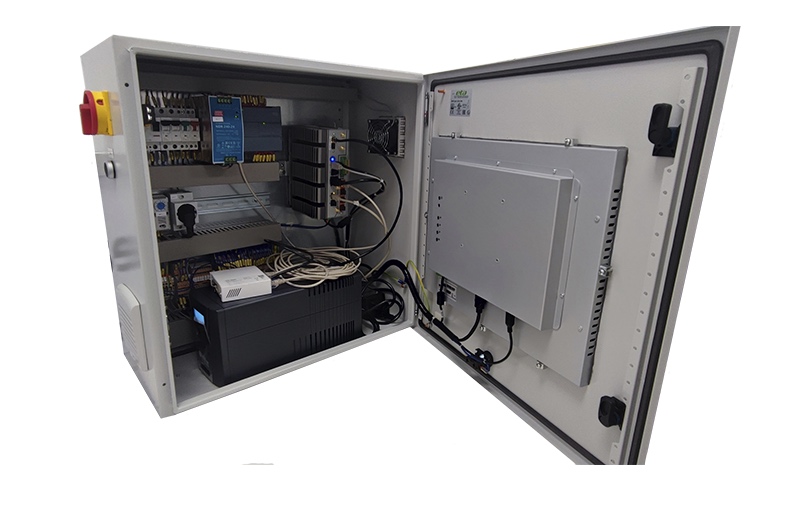

Components:

• Painted steel or stainless steel cabinet (depending on model).
• Safety guards.
• 24V 10A power supply with UPS system.
• Forced ventilation.
• Main switch.
• Siemens PLC (model depending on version).
• Connection terminals.
• Industrial PC.
• Proprietary Plug and Play software.

What does Vision Box manage?

• Encoders: to monitor machine movement information.
• Ejectors: to ensure perfect production quality.
• Sensors: to detect products.
• Products: to configure their dimensions.
• Inspections: to configure vision elements.

What advantages does Vision Box offer?

• User-Friendly: Intuitive interface for any operator.
• Intelligent Automation: Real-time data monitoring.
• Cost Reduction: Minimizes errors and waste.
• Total Connectivity: Flexible and scalable integration.
• Enhanced Safety: Reduces operational risks.
• Predictive Maintenance: Anticipates failures and minimizes downtime.
• Scalability: Adapts to different industrial requirements.

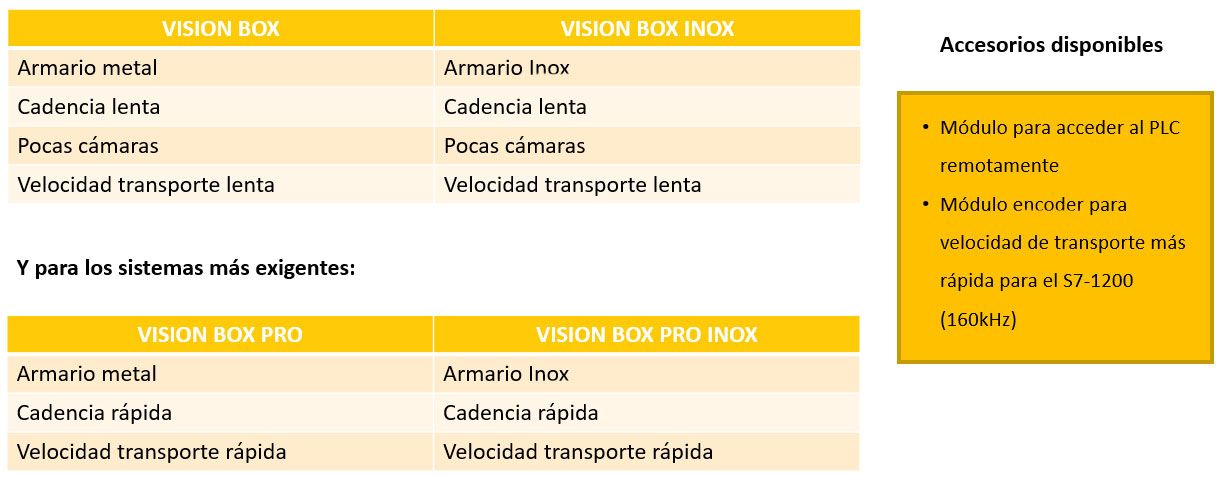

Available Models
