Value Proposition
The value proposition of CheckCan is based on the use of Artificial Intelligence (AI) applied to defect detection.
The system learns from detected errors and self-improves with each inspection, becoming the ultimate expert in reviewing its own cans.
Thanks to AI, CheckCan provides more accurate defect detection and reduces false rejections, optimizing process quality and avoiding unnecessary losses.
Automatic Format Adjustments

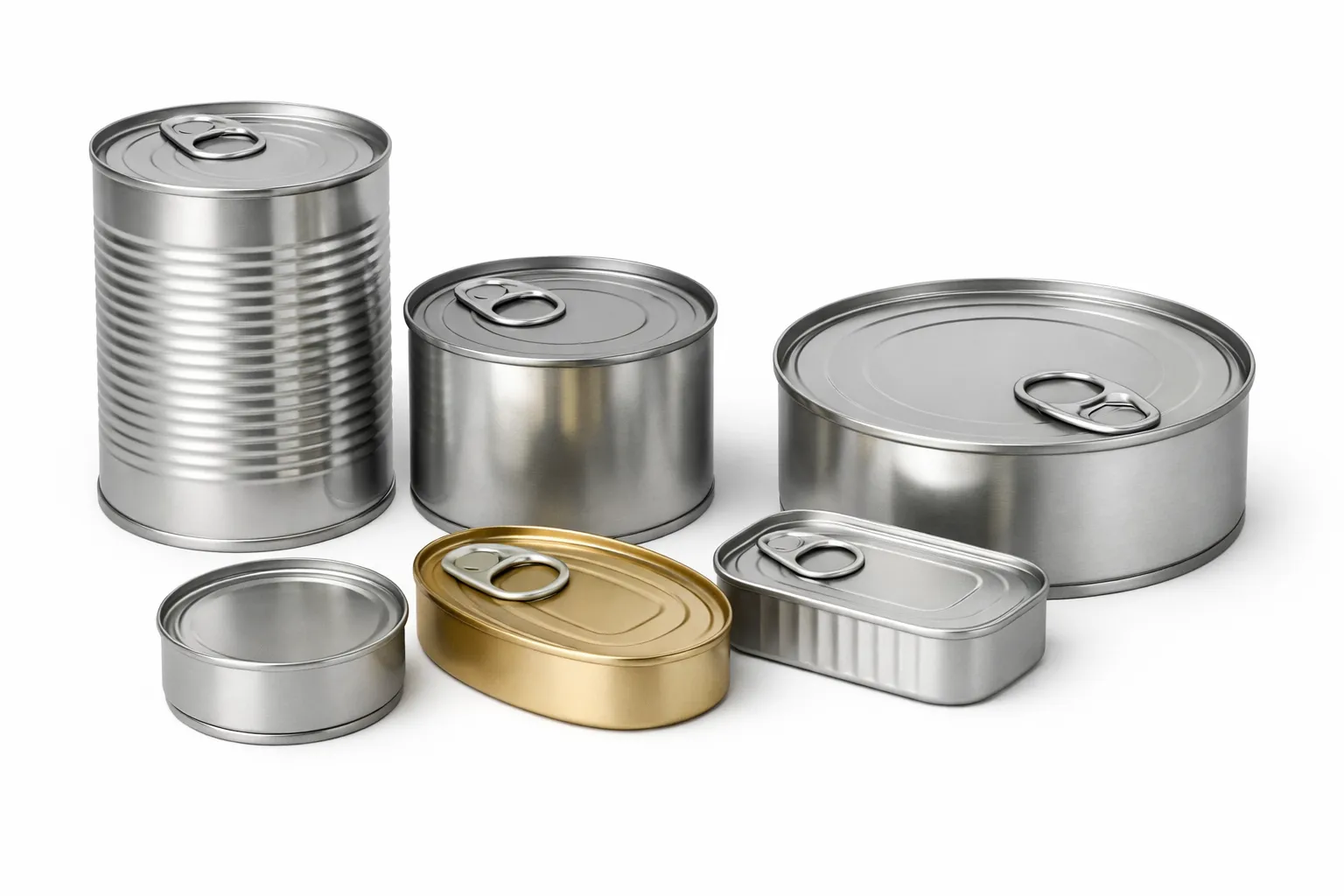

The system can accommodate different can formats: oval, rectangular, and cylindrical (Dingley, Hansa, Oval, Club, Round, Meat)
- Can height: From 15 mm to 275 mm
- Can diameter: From 40 mm to 110 mm
Inspection speed: Up to 90,000 units per hour.

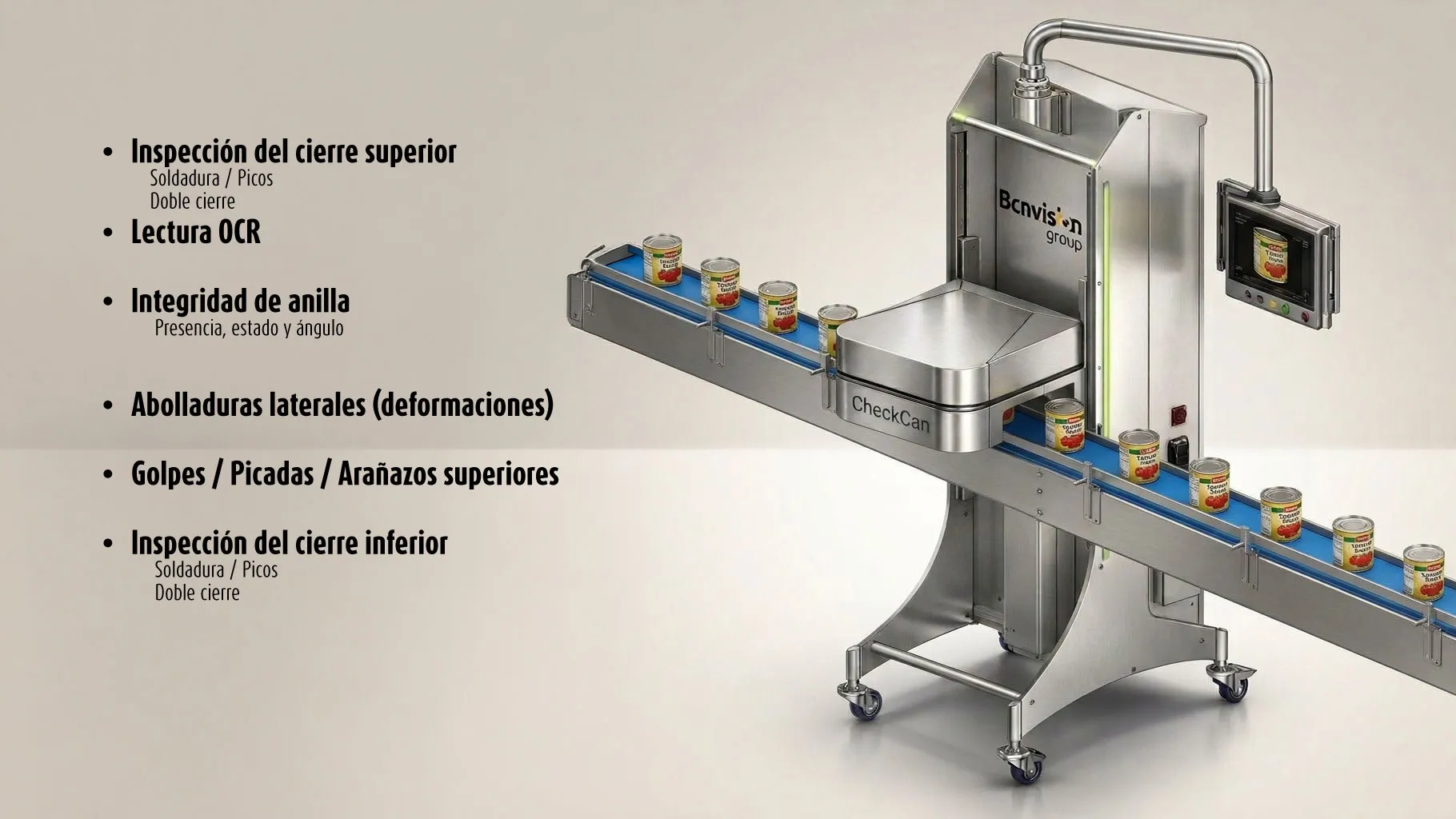

CheckCan Inspections
The CheckCan solution allows for various configurations, adapting to perform one, several, or all possible inspections on a can, depending on production needs.
Basic Inspections
- Top closure inspection
- Welding / Peaks

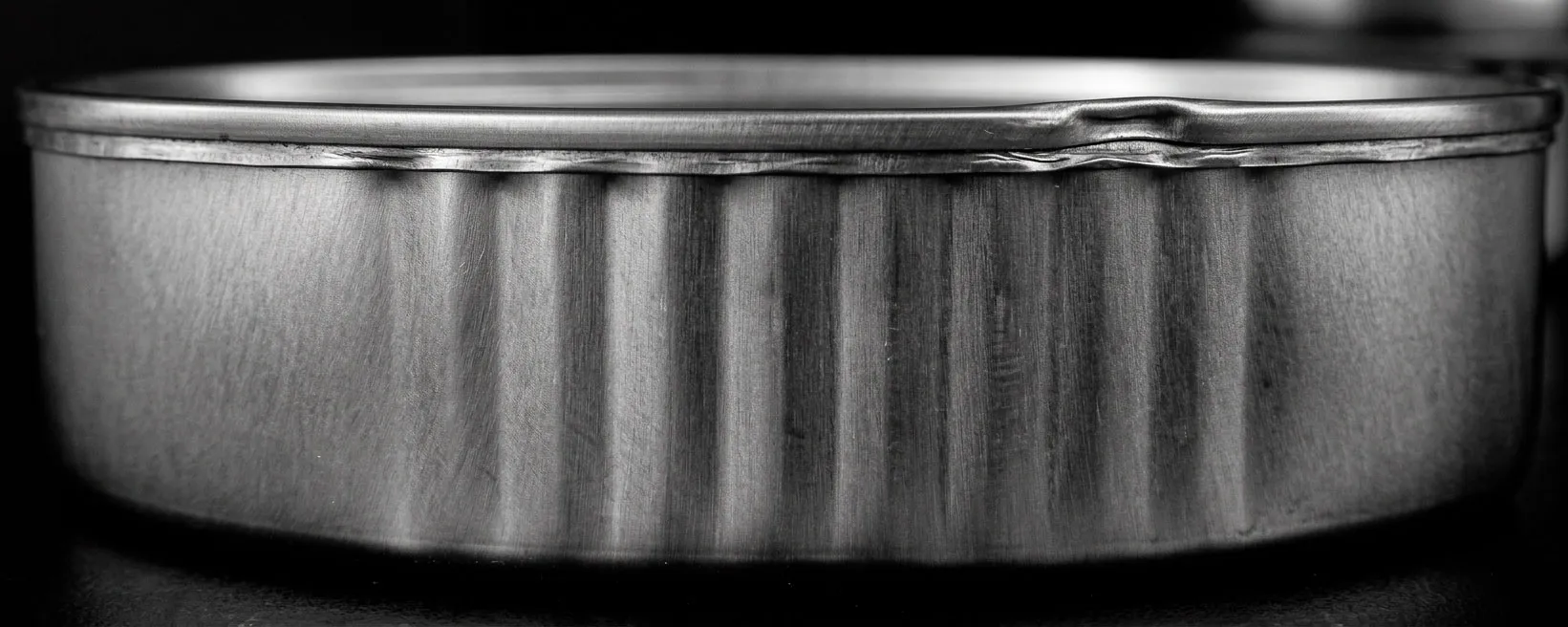

- Double seam

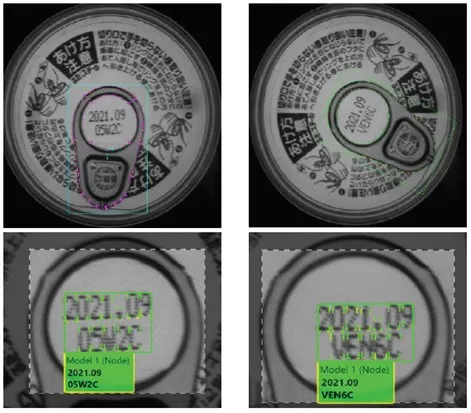

- OCR reading
- Tab integrity
- Correct tab placement (presence, condition, and angle)
Advanced Inspections

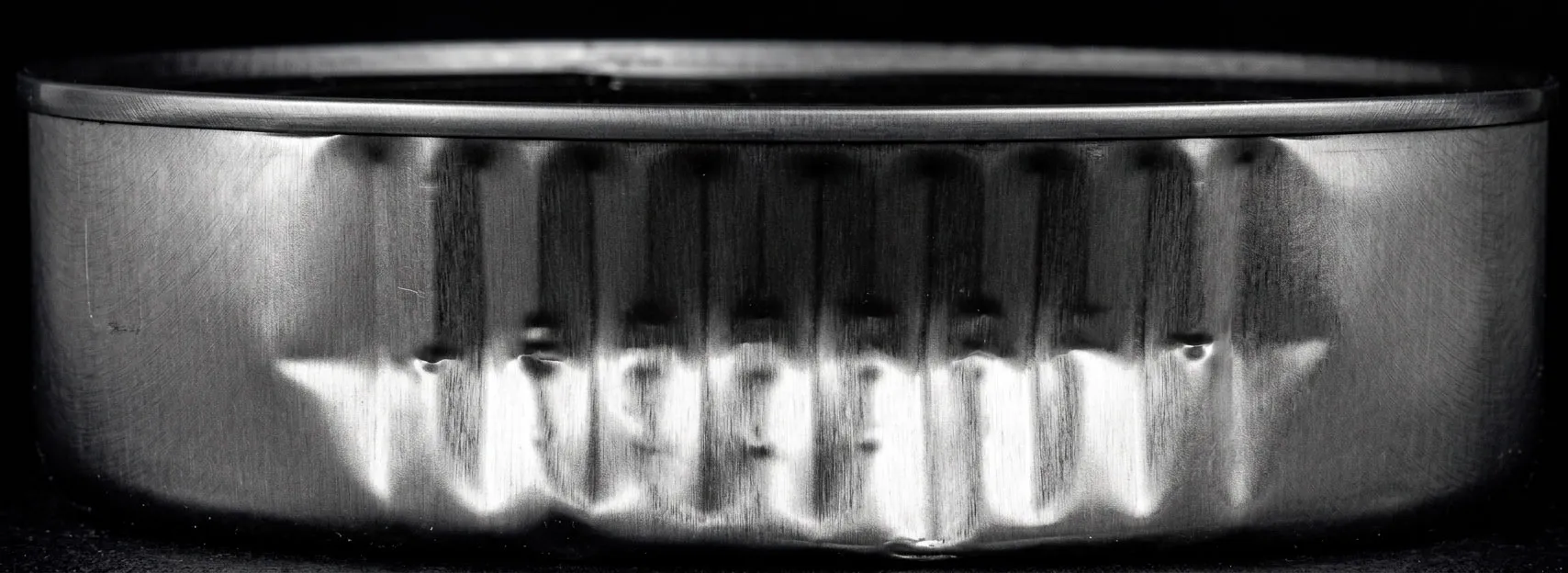

- Side dents (deformations)

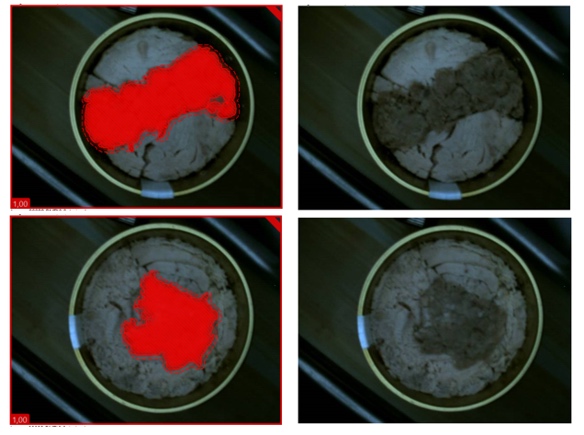

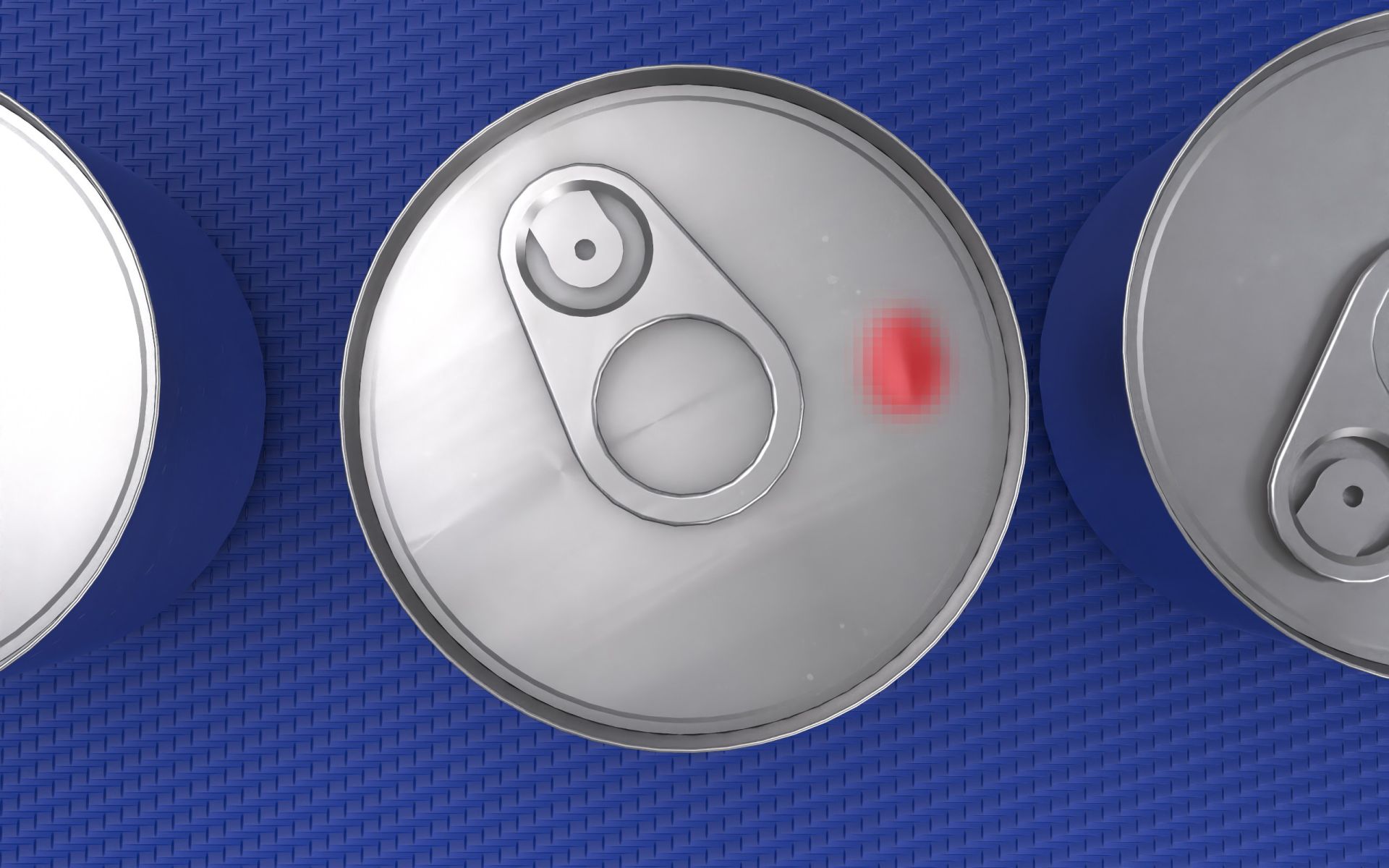

- Top dents / Punctures / Scratches
- Bottom closure inspection
- Welding / Peaks
- Double seam
Key Benefits:
- More reliable inspection thanks to AI, with minimal false rejects.
- Format changeovers in less than 10 minutes, with fast configuration of new products.
- Easy installation on existing conveyor lines with minimal maintenance.
- Compact, robust and resistant design for demanding industrial environments.
- User and access-level management directly from the software.
- Automatic adaptation to multiple can formats: oval, rectangular and cylindrical (Dingley,
- Hansa, Oval, Club, Round, Meat).
- IP65 protection rating (up to IP69 on request).
Cortex Vision Software
Cortex 3.0 centralizes, manages and scales your machine vision systems from a single multi-device platform. With a robust architecture designed for the industry of the future, it enables unified and efficient control of all vision equipment. In addition, it can be expanded with optional modules that enhance analysis, traceability and process control.
Enhancer | Database Statistics Module (CTX-DB)
- Centralization and analysis of inspection data
- Historical records, reject rates and statistical process control
- Controlled tolerance adjustment
- Statistics by operator, shift and defect type
- Browser-based access and CSV export
- Installation on a server or standalone PC for easy IT integration
Enhancer | Production Analysis Module (CTX-PRO)
- Analysis of machine vision system performance during production
- Early detection of process deviations
- Correlation of defects with production parameters
- Quality trend analysis in 60-minute windows
- Improved process efficiency and stability
