AirDryer Tray

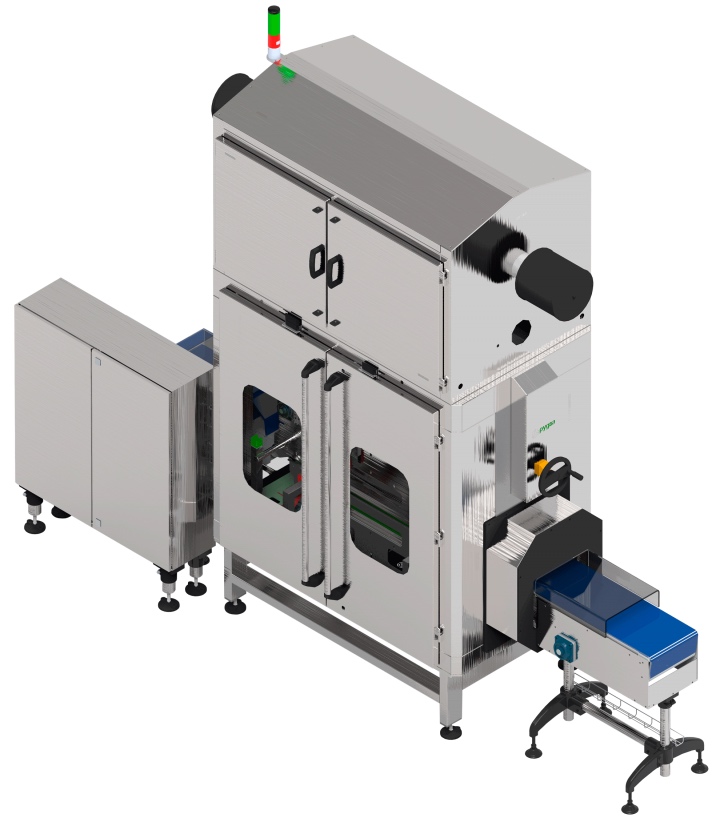

AirDryer Tray offers a perfect solution for drying problems with any type of flexible packaging, whether tubs, doy packs, trays, etc. The drying system for flexible packaging stands out for its small size compared to other systems. Its total length of 1600 mm makes it a perfect system for all types of production lines.

In drying systems for flexible packaging, the blower is located at the top for greater insulation from noise and external agents, and the drying components provide perfect drying on both the top and bottom of the packaging. The system cabin incorporates a washable acoustic insulation interior lining, access doors with safety glass, and inlet and outlet baffles.

Hardware

• Fully panelled system: noise and splash containment, thus preventing transfer to other processes.
• It has windows for process monitoring on the front.
• Noise levels below 80 dB(A). The installation complies with PRL acoustic regulations in both the motor and product drying areas.
• The blower can be located under or above the conveyor belt.
• Drying system using air jet plates.
• Manual or automatic adjustment of format height.
• Provides reliable, low-maintenance operation.
• Stainless steel finishes (optional aluminium blades).
• The constant air flow supplied allows us to adequately sweep the surface to be dried, increasing efficiency.
• Power supply 380-420 VD/660-690VY-50HZ.
• Power consumption according to the blower installed.
• Maintenance: replacement of belts and filters.
• Our systems provide between 40-60% more flow than other similar systems, allowing drying with less installed power and generating considerable economic savings during the system's useful life.
